Any of you guys running water/meth injection? Just looking to see what your tunes look like

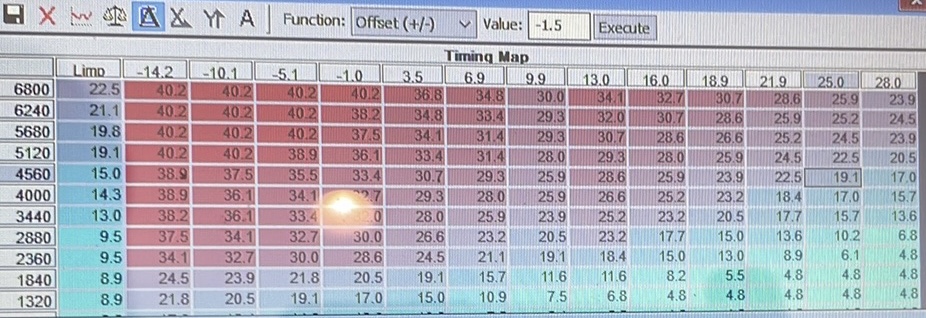

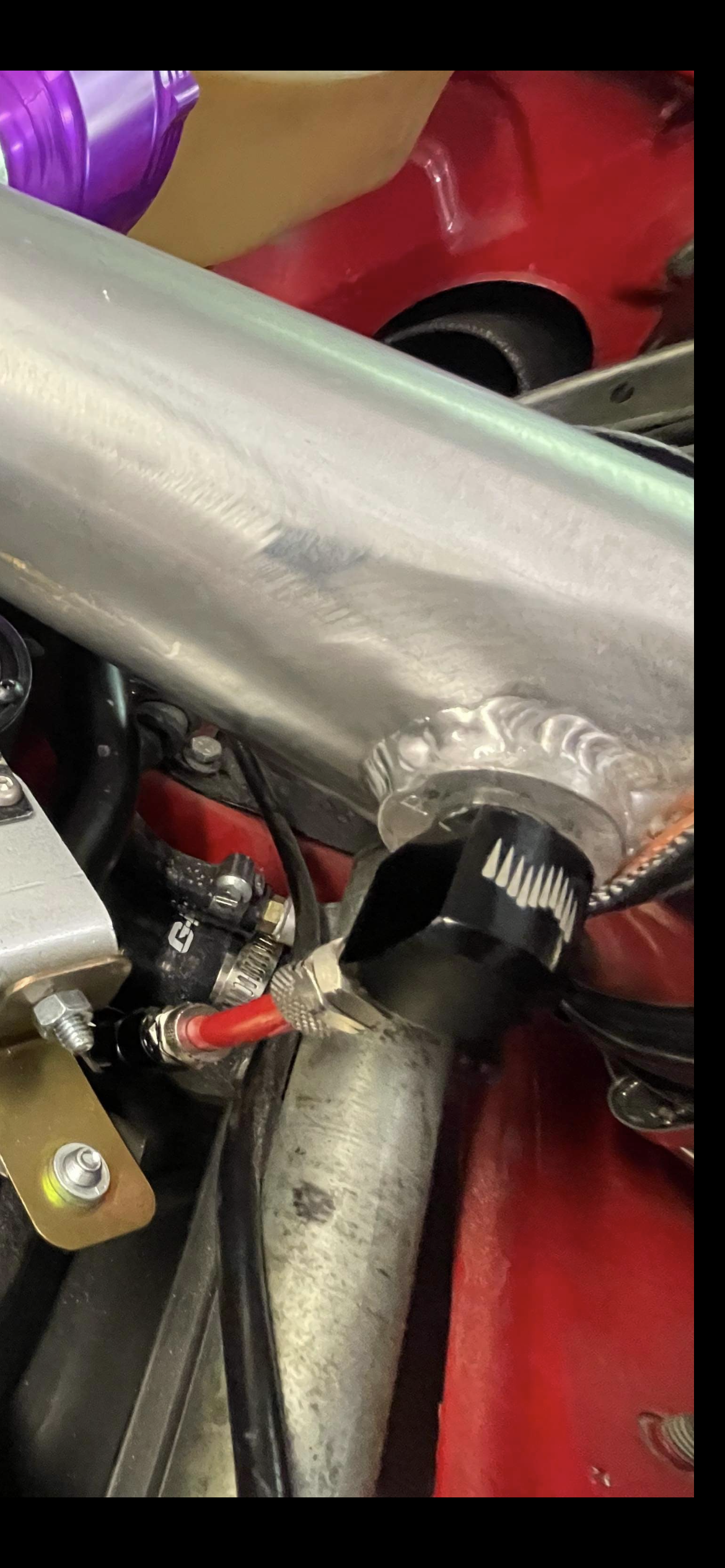

I’m currently setup with a stage 2 snow performance kit, with a 10gph v2 Nozzel about 10inches from the throttle body. It’s on a progressive controller, injection starts at 9psi and is at full by 18psi and up, max boost is 23/24ps. In a 4th gear pull I get full boost by 3480rpm, I’m using the m-tune E85 maps as a base and so far this car loves it, 1st, 2nd, 3rd will spin when boost hits. I’m betting I can add another degree or two of timing without issue… I know playing with fire LOL. Here’s my timing map, I just realized I need to swap the 9.9psi column with the 6.9, somehow I swapped those
Water/meth tuning
-
Tom
- Site Admin
- Posts: 8568
- Joined: Fri Jun 25, 2021 2:04 pm
- Location: Silicon Valley, CA
- Has thanked: 891 times
- Been thanked: 3847 times
- Contact:
I use the Aquamist system, but it has it's own controller. Its claim to fame is their fast-acting valve that is controlled with a pulse-width signal, and a self-contained controller. My sense is that the engineers got wrapped up in the technical intrigue and that the tech doesn't necessarily translate to a better water injection system. In any event, I won't have cell-by-cell values I can share. For max boost, more/all water and less meth works better on knock in my car. Too much pure water, however, and you can start blowing out the spark and missing (at least with E85). So for me it's about finding the sweet spot between boost level, timing advance, water/meth ratio, and overall injection quantity. My efforts have been unscientific, so I won't pretend to know where that sweet spot really is.
-
chris white
- Posts: 424
- Joined: Wed Aug 11, 2021 11:40 am
- Been thanked: 167 times
something about being Mr White and meth tuning seems to ring a bell....
-
blueline
- Moderator
- Posts: 6013
- Joined: Mon Sep 26, 2022 12:22 pm
- Location: Middle Tennessee
- Has thanked: 4368 times
- Been thanked: 2376 times
I knew there was more to the story... Heisenberg lives on as an engine builder.chris white wrote: Sun Apr 30, 2023 1:03 pm something about being Mr White and meth tuning seems to ring a bell....
Tim
Current:
'26 911 Carrera S - PTS Verde British Racing Green
'24 Cayenne S - Algarve Blue Metallic
'21 718 Cayman GTS - Black
'22 911 Turbo S - Carmine Red
'21 718 Cayman GT4 - White
'11 GMC 1500 Quad Cab 4x4 - Black
Musik-Stadt Region
Current:
'26 911 Carrera S - PTS Verde British Racing Green
'24 Cayenne S - Algarve Blue Metallic
'21 718 Cayman GTS - Black
'22 911 Turbo S - Carmine Red
'21 718 Cayman GT4 - White
'11 GMC 1500 Quad Cab 4x4 - Black
Musik-Stadt Region
-
chris white
- Posts: 424
- Joined: Wed Aug 11, 2021 11:40 am
- Been thanked: 167 times
it gets worse....My father was a nuclear physics (ex Cornell professor) that lived in Santa Fe. I know that area really well.....blueline wrote: Sun Apr 30, 2023 1:24 pmI knew there was more to the story... Heisenberg lives on as an engine builder.chris white wrote: Sun Apr 30, 2023 1:03 pm something about being Mr White and meth tuning seems to ring a bell....
