[Abstract: The following information is a ‘deep dive’ into the specifics of 70s era Volkswagen-Porsche 914-4 and Porsche 914-6 car engines, as related to special provisions for protection to their respective valve/tappet systems and needs, as low-or zero-lead automotive fuels came into common, standard use. Owners of 70s vintage Volkswagens (flat-4 engines) and Porsche (flat-6 engines) need to be aware of the critical nature of taking adequate care to select and use the correct engine lubrication components for their cars, so as to optimally assure a long and healthy engine life in these early to mid-70s period air-cooled VW/Porsche models that we maintain such a high regard for.]
-----------
Preface: The Duality of 70s Porsche Valvetrain Design
The following information pertains to the presence of specially protected components for the valve and tappet systems in 1970s era Porsche and Volkswagen-Porsche vehicles, specifically the 914-6 and 911 models. A comprehensive analysis reveals that this "special protection" was not a single, isolated feature but a combination of two distinct factors inherent to the vehicles of that era: the superior design and metallurgical choices of the original factory components, and the properties of the engine oil used at the time. All engines in question, including the Volkswagen Type 4 and Porsche flat-six, employed a flat-tappet valvetrain design. This design, while robust in its time, is fundamentally susceptible to the chemical composition of modern engine lubricants. The widespread reformulation of motor oils to reduce the crucial anti-wear additive zinc dialkyldithiophosphate (ZDDP) has created a significant maintenance challenge for owners of these classic cars. Therefore, the most effective form of "special protection" for these components today is not found in the original design alone, but in an informed and deliberate maintenance strategy that addresses the deficiencies of modern lubricants.
I. The 1970s Porsche Engine Ecosystem: A Foundational Overview
1.1. Context and Co-Development: The VW-Porsche Relationship
The Porsche 914 was conceived as a cooperative venture between Porsche and Volkswagen, and its official debut at the 1969 Frankfurt Motor Show marked a new era for both brands. The vehicle was intended to serve as a successor to the Porsche 912 and the Volkswagen Karmann Ghia. This joint development led to a unique product strategy centered on a dual engine platform. The 914 was offered with two main engine types, which are crucial to understanding the variations in valvetrain design: a range of Volkswagen-derived flat-four engines and a Porsche-built flat-six.
The four-cylinder engines, which powered the standard 914 models, were based on the Volkswagen Type 4 unit. These included a 1.7-liter engine (1970–73) that produced 80 hp, a 2.0-liter variant (1973–76) that generated 95-100 hp, and a 1.8-liter engine (1974–76) that was rated at 85 hp. In contrast, the high-performance 914/6 model, produced from 1969 to 1972, was equipped with a 2.0-liter flat-six engine from the Porsche 911T. This engine produced 110-125 hp, providing a stark performance contrast to the four-cylinder versions.
1.2. The Valvetrain's Function and the Flat-Tappet Mechanism
A valvetrain is the mechanical system that controls the intake and exhaust valves of an internal combustion engine, allowing the precise flow of air and fuel into the cylinders and the expulsion of exhaust gases. This system is composed of several key components, including the camshaft, which has a series of eccentric lobes that dictate the timing, lift, and duration of the valve openings; lifters or tappets; pushrods; and rocker arms.
Both the VW Type 4 and the Porsche flat-six engines of the 1970s employed a "flat-tappet" or "solid lifter" design. In this configuration, the flat, cylindrical bottom of the lifter rides directly on the contoured surface of the camshaft lobe. The interface between the cam lobe and the lifter face is a point of immense pressure and high-speed sliding friction. The extreme forces at this contact point make it one of the most critical wear interfaces in the engine, requiring a robust design and specialized lubrication to prevent premature wear and catastrophic failure.
________________________________________
Table 1: 1970s Porsche & VW Valvetrain Specifications
Model Engine Type Valvetrain Architecture Number of Cylinders Displacement Range
Porsche 914/4 VW Type 4 Cam-in-block (OHV) 4 1.7 L, 1.8 L, 2.0 L
Porsche 914/6 Porsche 901/3 Single Overhead Cam (SOHC) 6 2.0 L
Porsche 911 Porsche 901 Series Single Overhead Cam (SOHC) 6 2.0 L to 2.7 L
________________________________________
II. The Volkswagen-Porsche 914/4: The Flat-Four's Pushrod Valvetrain
2.1. Anatomy of the VW Type 4 OHV Valvetrain
The valvetrain of the Volkswagen Type 4 engine, which powered the majority of 914 models, is a classic Overhead Valve (OHV) or "pushrod" design. In this architecture, the camshaft is positioned low within the engine block, or "cam-in-block". The system operates through a sequential chain of components: the camshaft's lobes press on solid lifters, which then transmit this motion to long pushrods. These pushrods travel upward through the engine case to the cylinder head, where they pivot a set of rocker arms. The rocker arms, in turn, press down on the valve stems, causing the two valves per cylinder to open and close. This mechanical design is a robust and proven system, but it necessitates periodic manual valve adjustments to maintain the correct valve lash, or clearance, as documented in maintenance guides for the 914-4.
2.2. Factory Components and Metallurgy
The durability of the valvetrain is highly dependent on the quality of its components. The factory camshafts for these engines were manufactured using a specialized metallurgical process known as "chilled cast" iron. This method involves incorporating machined steel molds into the casting process, which causes the camshaft's lobes to harden very quickly. This chilling process creates a matrix of carbide on the cam lobe surface, providing exceptional wear resistance and durability. Similarly, the lifters were cast from a hardenable iron, then precision-machined and heat-treated to ensure the highest quality available.
The importance of this meticulous component quality is highlighted by historical issues with some aftermarket parts. For instance, an account from the period refers to aftermarket camshaft blanks provided by a company named CWC in the 1970s as "JUNK" because the grade of iron was observably different from the original equipment manufacturer (OEM) parts. This indicates that the "special protection" was, in many cases, simply the superior engineering and manufacturing quality of the original factory parts when compared to some contemporary alternatives. This serves as a cautionary lesson for anyone restoring these vehicles today: a modern, quality aftermarket component using advanced chilled cast blanks or billet steel may be superior to a sub-standard replacement from the era, demonstrating the lasting value of original-quality component integrity.
2.3. The Evolution and Robustness of the VW Type 4
The Type 4 engine, while derived from the Volkswagen family, was a significant departure from its predecessors, such as the Type 1 engine found in the Beetle. It was a more advanced and durable design, featuring a stronger crankshaft with four main bearings, larger dual-port heads with bigger valves, and an aluminum engine case that was far tougher than the older magnesium cases. These upgrades were all engineered to handle more power and increase the engine's lifespan. Notably, around 1978, the Type 4 engine was updated to include hydraulic lifters. However, this modification occurred after the Porsche 914's production had ceased, confirming that all 914/4 engines utilized the solid, flat-tappet system.
III. The Porsche 911 and 914/6: The Flat-Six's SOHC Valvetrain
3.1. The Engineering of the SOHC Valvetrain
The Porsche 914/6 and the 911 models of the 1970s featured a completely different valvetrain design from their four-cylinder counterparts. Instead of a pushrod system, they utilized a Single Overhead Camshaft (SOHC) architecture. This design places a single camshaft directly on top of each of the two cylinder heads, where it can directly actuate the valves, either with or without the use of rocker arms. This eliminates the need for the long, heavy pushrods required by the cam-in-block design. The camshafts themselves were driven by a single intermediary shaft located below the crankshaft via a chain-drive system, which also powered the oil pumps.
3.2. The 914/6 and its 911 Heritage

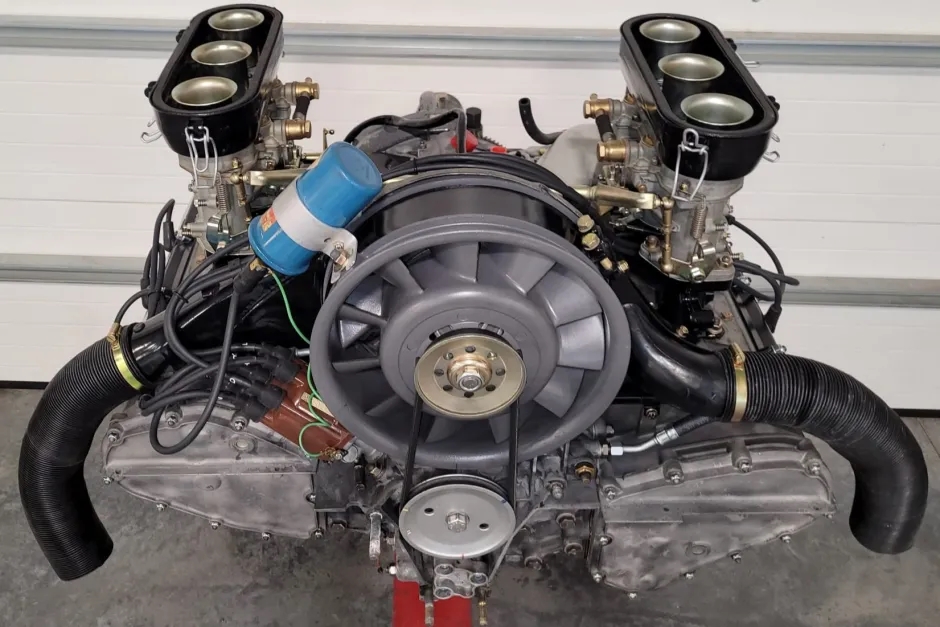

The 914/6 was a testament to Porsche's engineering heritage, as it was equipped with the 2.0-liter flat-six engine from the 1967–1969 911T. This engine, a detuned version of the 911's core power plant, was engineered for a more relaxed character. Its camshafts had "less lift and relaxed timing characteristics" compared to other, more aggressive 911 engines of the time, which inherently reduced the stress on the valvetrain components. The engine also featured robust iron cylinder barrels, contrasting with the iron and aluminum "Biral" barrels used in the more powerful 911S and 911L models. This deliberate design choice demonstrates that a form of "special protection" was built into the engine's engineering to prioritize durability and reliability over peak performance.
3.3. The 911's Valvetrain Evolution (1970-1979)
Throughout the 1970s, the Porsche 911's engine saw continuous development and increases in displacement, moving from the 2.0L unit to 2.7L in 1974. The valvetrain, however, maintained its core SOHC architecture with two valves per cylinder throughout this period. The system was refined with technical updates such as the introduction of Bosch K-Jetronic CIS fuel injection in 1974.
The SOHC design itself is a form of inherent protection for these engines. An SOHC system, with its camshafts placed in the cylinder heads, has fewer and lighter moving parts compared to the pushrod system of the VW Type 4 engine. This reduction in reciprocating mass—the mass of components that change direction rapidly—is highly advantageous, especially at the high RPMs these engines were capable of. By eliminating the long pushrods and relying on a more direct actuation, the SOHC design reduces valvetrain stress and mitigates the risk of "valve float" (a condition where valves fail to follow the cam profile at high speeds). Consequently, the Porsche flat-six's SOHC valvetrain can be viewed as a more refined and robust system for performance applications than the VW's pushrod design, directly answering the implied question about superior components.
IV. The Lubrication Imperative: ZDDP and Flat-Tappet Longevity
4.1. The Chemistry of Flat-Tappet Wear and ZDDP's Role
The longevity of a flat-tappet valvetrain is critically dependent on its lubrication. The high-pressure, high-friction interface between the camshaft lobe and the lifter face can easily break the hydrodynamic oil film, leading to metal-on-metal contact, a condition known as boundary lubrication. To combat this, engine oils of the 1970s contained a multi-functional additive called Zinc Dialkyldithiophosphate, or ZDDP.
ZDDP is a heat-activated additive. When the extreme pressures and temperatures at the cam/tappet interface cause friction to rise, the ZDDP molecules break down and form a protective "tribofilm," or sacrificial layer, that bonds to the metal surface. This thin layer effectively prevents direct metal-to-metal wear. In addition to its anti-wear properties, ZDDP also functions as an anti-corrosion and anti-oxidant agent, helping to prolong the life of both the engine and the oil itself.
4.2. A Historical Timeline of ZDDP Reduction
A major threat to the valvetrains of these classic cars emerged not from a design flaw, but from changes in oil formulation driven by environmental regulations. The reduction of ZDDP levels in motor oils is directly tied to the introduction of catalytic converters and mandates from the Environmental Protection Agency (EPA). The phosphorus component of ZDDP is a known "poison" to catalytic converters; it coats the catalytic beads, rendering them ineffective as a pollution control device and shortening their lifespan.
To comply with federal regulations that catalytic converters must be warranted for 50,000 miles or more, oil manufacturers were compelled to reduce the concentration of ZDDP. This historical development led to a series of changes in the American Petroleum Institute (API) oil classifications, with each new specification reducing the permissible amount of anti-wear additives. This shift created a critical and often misunderstood problem for owners of vintage flat-tappet engines, as modern oils formulated to protect catalytic converters are no longer formulated to protect the high-wear components of older engines.
________________________________________
Table 2: Historical API Oil Classifications and ZDDP Concentrations
API Service Category Era of Introduction Typical/Regulated ZDDP Concentration (ppm)
SE 1972 > 1000 ppm (No official limit)
SF 1980 > 1000 ppm (No official limit)
SH 1993 Max 1000 ppm for lighter oils
SL 2001 Approx. 1000 ppm
SM 2004 Max 800 ppm
SN 2010 Max 800 ppm (with some modern additives)
SP 2020 Max 800 ppm (with modern additives)
________________________________________
4.3. The Consequences of Using Modern Oil
The consequence of using modern, low-ZDDP oils in a vintage flat-tappet engine is predictable and severe. Without the sacrificial protective film provided by ZDDP, the cam lobes and lifter faces are left vulnerable to extreme wear. The result is a rapid flattening of the camshaft lobes, which reduces valve lift and duration, leading to a significant loss of power. If left unaddressed, this wear can lead to total engine failure, a scenario often referred to as an "engine disaster".
V. Maintenance and Component Recommendations for Preservation
5.1. Selecting the Correct Oil: A Nuanced Approach
The question of which oil to use for these classic air-cooled engines is complex, with a variety of recommendations available. Porsche Classic, for instance, recommends a 20W-50 conventional oil for early 911 and 914 models, noting its compatibility with original materials like cork gaskets. However, in another context, Porsche recommends modern synthetic oils for their superior performance in modern engines, creating a seeming contradiction.
Enthusiast forums offer a range of suggestions, from using diesel-spec oils like Shell Rotella T 15W-40, which historically contained higher levels of ZDDP, to modern high-zinc formulations like Amsoil Z-Rod or Driven Racing Oil. This varied landscape of advice underscores the need for a nuanced approach to lubrication.
For street use, it is generally recommended to select a modern oil specifically formulated for classic or high-performance flat-tappet engines, such as those from Amsoil, Driven, or Porsche Classic, which contain an appropriate level of ZDDP. Alternatively, a high-quality diesel oil with an API "C" rating and a secondary "S" rating that still maintains a ZDDP concentration of over 1200 ppm can be a suitable choice. For racing or track use, specialized racing oils are available with very high ZDDP levels, but these are not recommended for street use due to their lack of detergents and other additives necessary for long-term engine life.
Viscosity choice is also important. A 20W-50 viscosity is a popular and suitable choice for hotter climates and older or more worn engines, while 10W-30 or 15W-40 may be adequate for cooler environments. It is imperative to check hot oil pressures, as pressures exceeding 45 psi can bypass the stock oil cooler and lead to a significant increase in oil temperature, a critical issue for air-cooled engines.
5.2. The Role of ZDDP Additives
For owners who prefer a particular modern oil, the use of ZDDP additives is a common practice to restore the necessary protection for the valvetrain. However, this practice is not without its own risks. Multiple sources warn that adding too much ZDDP can be as detrimental as having too little. Excessive ZDDP can cause a condition known as "over-plating," where a thick, friction-generating film forms on the metal surfaces, leading to metallurgical damage and accelerated wear. This highlights that a simple "more is better" approach to ZDDP is incorrect. Instead, a precise dose is required to restore the ZDDP level to the optimal range of 1000-1400 ppm, such as the concentration found in the obsolete "SF" category oils.
5.3. Upgrading Components for Enhanced Durability
For enthusiasts rebuilding or upgrading their engines, there are numerous modern aftermarket components that offer enhanced durability. These include camshafts and lifters made from superior materials, such as billet steel or hardened iron, and upgraded components like Chromoly pushrods and heavy-duty rocker shafts. These components are designed with improved materials and manufacturing tolerances to better withstand the high stresses of performance driving and provide a path to long-term reliability that goes beyond the original factory design.
VI. Conclusion: Safeguarding a Legacy
The information gathered demonstrates that the "special protection" for the valvetrain components in 1970s Porsche 914-6 and 911 models was an inherent aspect of their original design and manufacturing. The Porsche flat-six engine, in particular, benefited from a more advanced SOHC valvetrain, which was more robust than the VW-derived pushrod design. Both systems, however, were reliant on the presence of ZDDP in the engine oil to protect their flat-tappet components from wear.
The primary threat to the longevity of these components today is the systematic reduction of ZDDP in modern motor oils, a change that was driven by the need to protect catalytic converters. Consequently, the original design's robustness has been compromised by changes in the very lubricant it depends on. Preserving these iconic vehicles today requires a proactive and informed maintenance approach. This includes a careful selection of a modern oil that is specifically formulated for classic flat-tappet engines, the judicious use of ZDDP additives with an understanding of proper concentration, and the consideration of modern, high-quality aftermarket components that can provide a new layer of durability. The ultimate protection for these components is not a hidden factory secret, but an educated owner's commitment to adapting to the modern lubrication landscape.
------------------------------
Sources: Available upon request. A cooperative research inquiry prepared by C. Carey PCA/SVR and AI
Note: The principal author is a historian in aerospace life support technology and military history. He is also profoundly interested in the Porsche/Volkswagen automobile designs and their past cooperative histories. Although a Porsche enthusiast, he also believes that the Porsche story in its entirety is incomplete without an appreciation and acknowledgement of the interactive contributions by both participants (Volkswagen and Porsche) in past developments. The foregoing informal inquiry underlies that belief.
