AOS Heat Shield / Downpipe

Talk and Tech about turbocharged 924/944/968 cars
Dlr944
Posts: 7
Joined: Sun Jan 25, 2026 12:42 pm

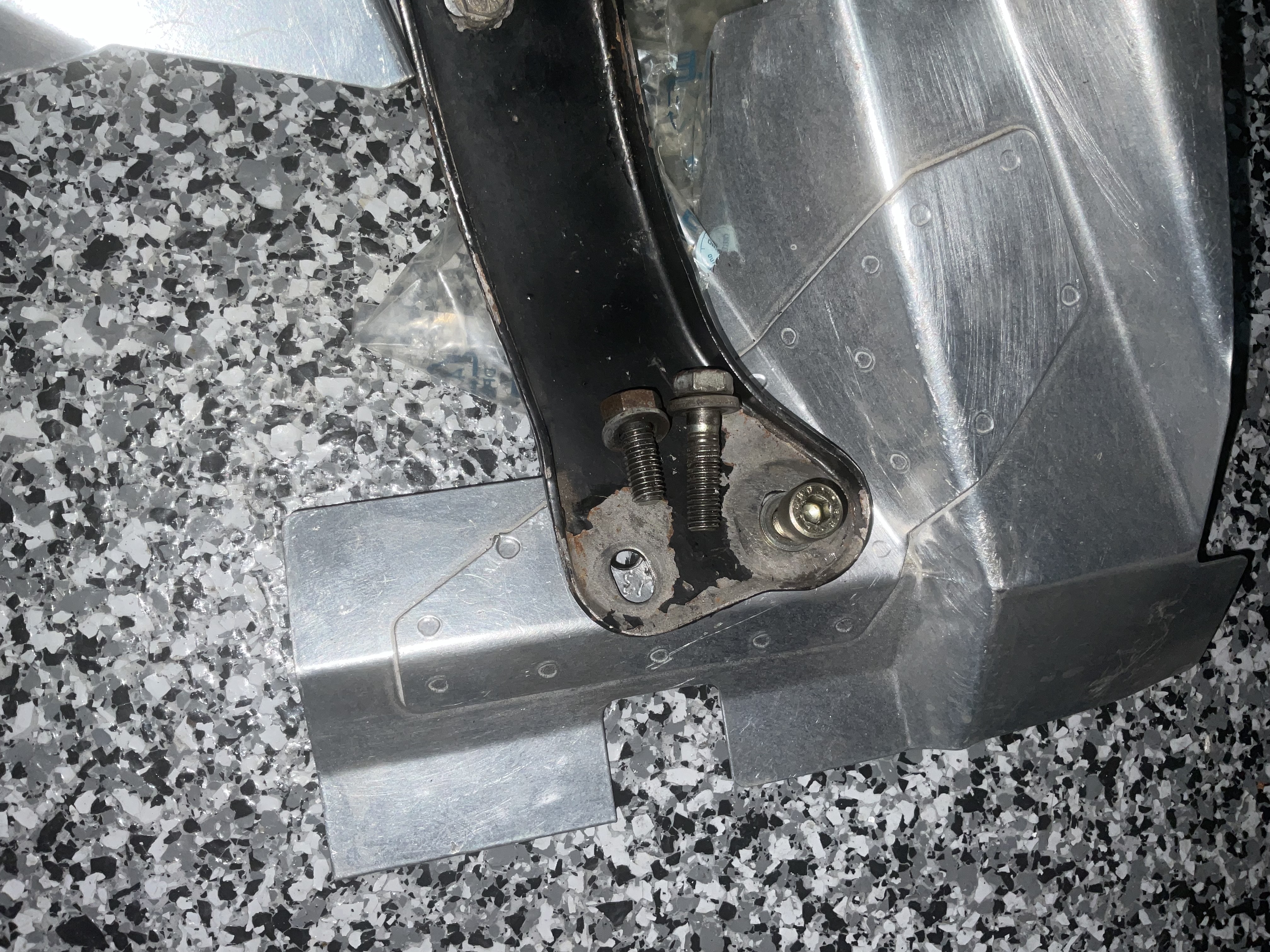

It’s been an off / on project and I cannot recall the correct bolts used in AOS heat shield downpipe setup? Assume socket head goes on downpipe and smaller bolt goes on left? Can’t recall where the middle one goes to as I had all three grouped together in the same bin.
Add Pictures/Files

#1

Dlr944
Posts: 7
Joined: Sun Jan 25, 2026 12:42 pm
I solved this. Socket head bolts goes to turbo and center bolt goes to down pipe
