I'm hopeful his DME/KLR survives, but if needed I can port 24-pin images over to a 28-pin chip.944m3 wrote: Sat Feb 21, 2026 7:44 am I have a DME and KLR sitting in the garage. Pulled last fall when I installed my standalone. Happy to loan them out if you need to test. We can work something out if you need to keep them.
Note it’s a 28 pin DME.
DME & KLR got wet
-
Tom
- Site Admin
- Posts: 8568
- Joined: Fri Jun 25, 2021 2:04 pm
- Location: Silicon Valley, CA
- Has thanked: 891 times
- Been thanked: 3847 times
- Contact:
-
chrischrischris
- Posts: 84
- Joined: Mon Mar 03, 2025 11:10 am
- Has thanked: 2 times
- Been thanked: 23 times
Thanks everyone! I opened the DME and KLR and applied isopropyl alcohol 99% with a toothbrush to the boards. The boards looked good even before the cleaning, but there was definitely some water in there. They are indoors and spent time on my home radiator and so should have zero moisture inside when I try to start the car again tomorrow. If no start, I will try the trick of jumping the KLR pins, thanks for that tip!
If the car doesn't start, then I guess my options are to source a new DME. Initially I thought that the flywheel sensors failed, but that seems unlikely compared to a water induced fault with the computers.
I live in Connecticut but brought my car to Germany for fun. This isn't the "fun" I had anticipated, but hoping it all works out and thankful for the carpokes community. I've met some great porsche enthusiasts here over the past several months too.
If the car doesn't start, then I guess my options are to source a new DME. Initially I thought that the flywheel sensors failed, but that seems unlikely compared to a water induced fault with the computers.
I live in Connecticut but brought my car to Germany for fun. This isn't the "fun" I had anticipated, but hoping it all works out and thankful for the carpokes community. I've met some great porsche enthusiasts here over the past several months too.
-
chrischrischris
- Posts: 84
- Joined: Mon Mar 03, 2025 11:10 am
- Has thanked: 2 times
- Been thanked: 23 times

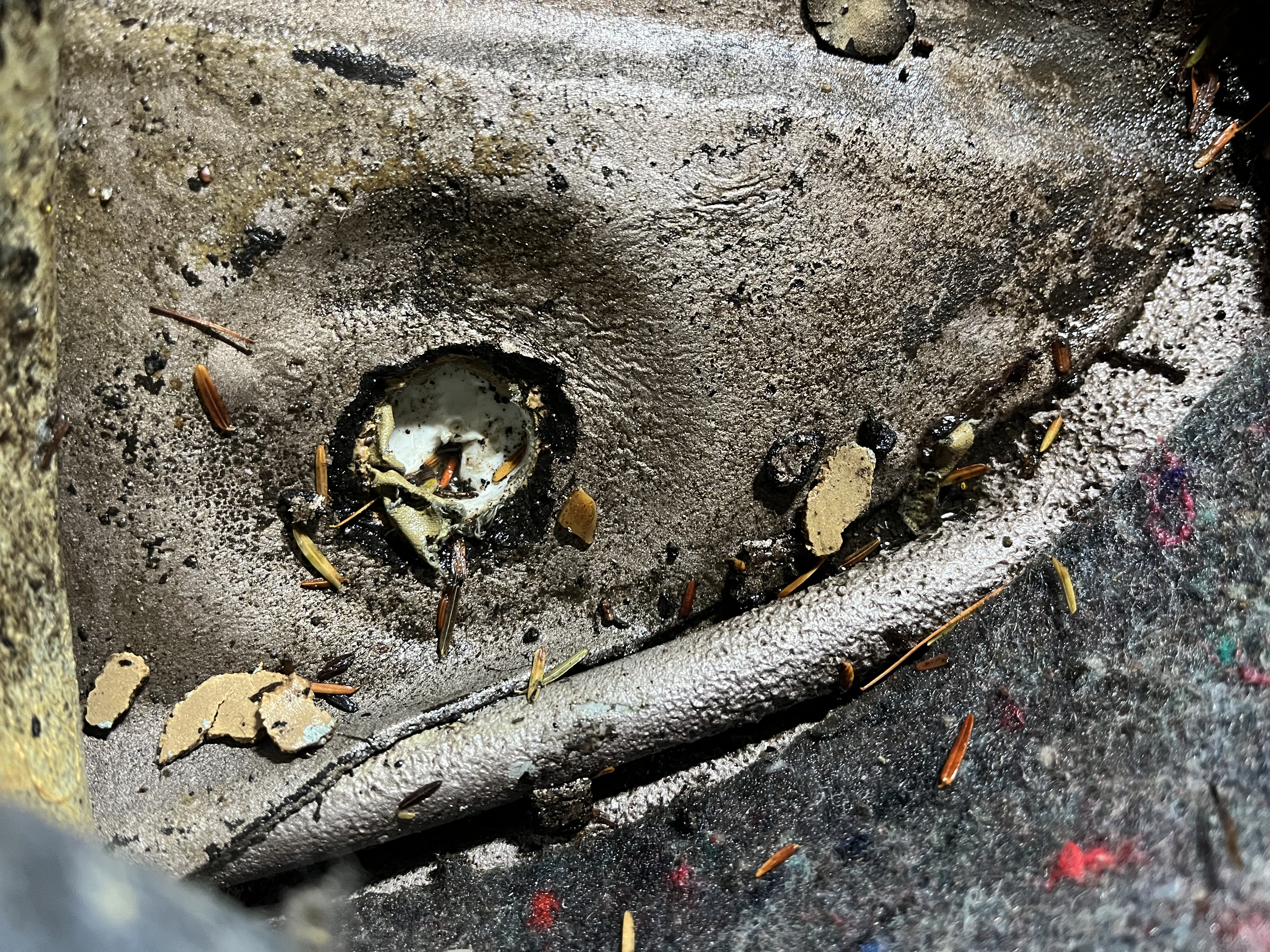

Some photos of the area behind the driver seat that seems to be an emergency drain cap embedded in undercoating, etc. I poked a small hole in the white plastic which can repaired, but wondering if this is a cap which can/should be replaced and then covered back with waterproofing material on both sides.

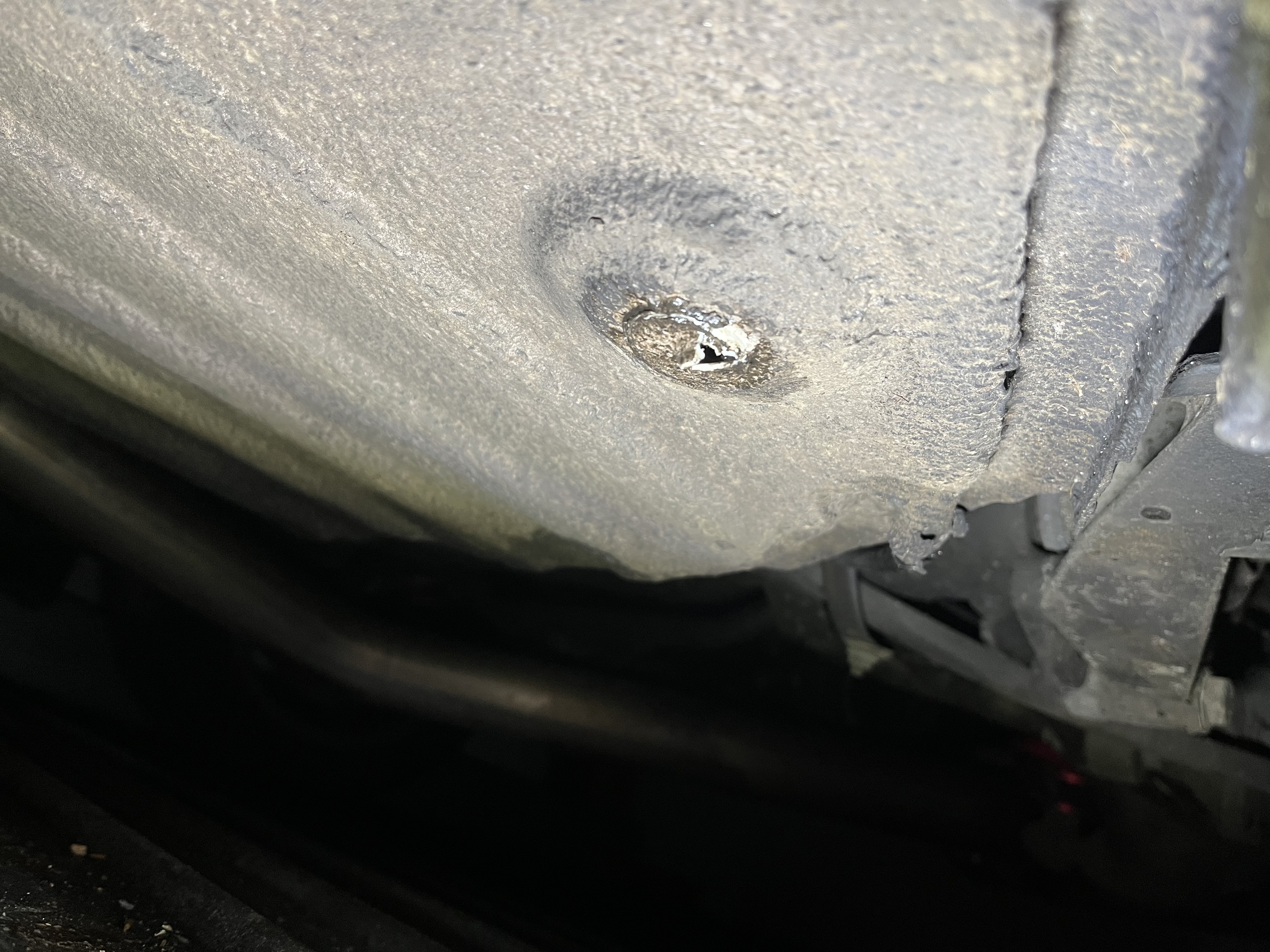

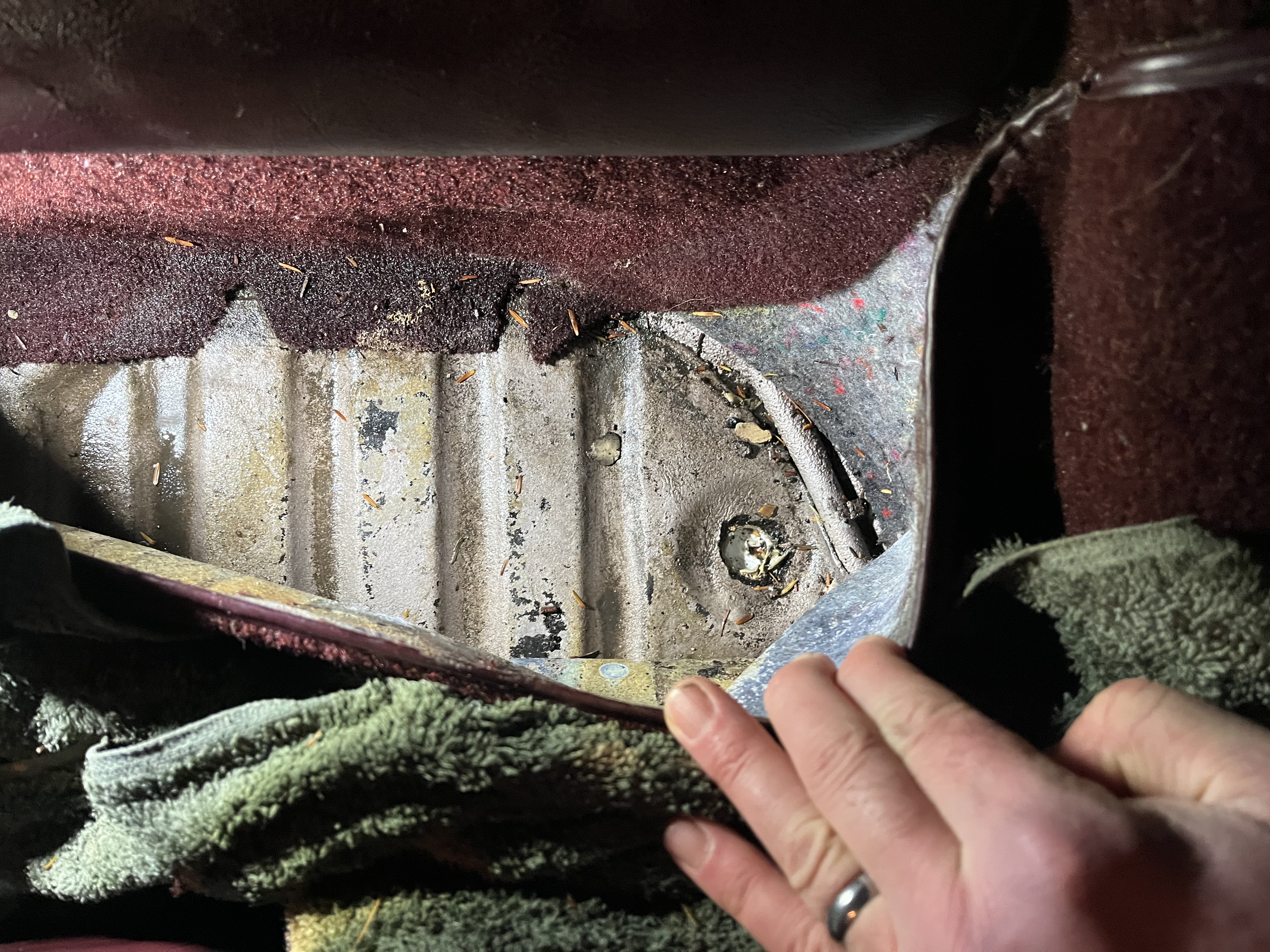

Photos are from behind driver's seat. Two inside and the last is looking up under the car.
Photos are from behind driver's seat. Two inside and the last is looking up under the car.
- Add Pictures/Files
-
- inside behind driver seat
- drain 1.jpeg (3.35 MiB) Viewed 124 times
-
- drain2.jpeg (5.8 MiB) Viewed 124 times
-
- drain3.jpeg (3.21 MiB) Viewed 124 times
-
Tom
- Site Admin
- Posts: 8568
- Joined: Fri Jun 25, 2021 2:04 pm
- Location: Silicon Valley, CA
- Has thanked: 891 times
- Been thanked: 3847 times
- Contact:
Ah, that's not the panel I was thinking of. Let me see if I can figure out what when in there in no one chimes in on it... Anyone?
-
chrischrischris
- Posts: 84
- Joined: Mon Mar 03, 2025 11:10 am
- Has thanked: 2 times
- Been thanked: 23 times
The isopropyl alcohol worked to clean and dry the circuit boards. The car is running and seems to be just the same as before the flooding. Really surprised at the durability of the electronics. I will plan to replace the DME with a focus 9 in the near future.
