Oil pan gasket sealing
-
Tom
- Site Admin
- Posts: 8563
- Joined: Fri Jun 25, 2021 2:04 pm
- Location: Silicon Valley, CA
- Has thanked: 890 times
- Been thanked: 3842 times
- Contact:

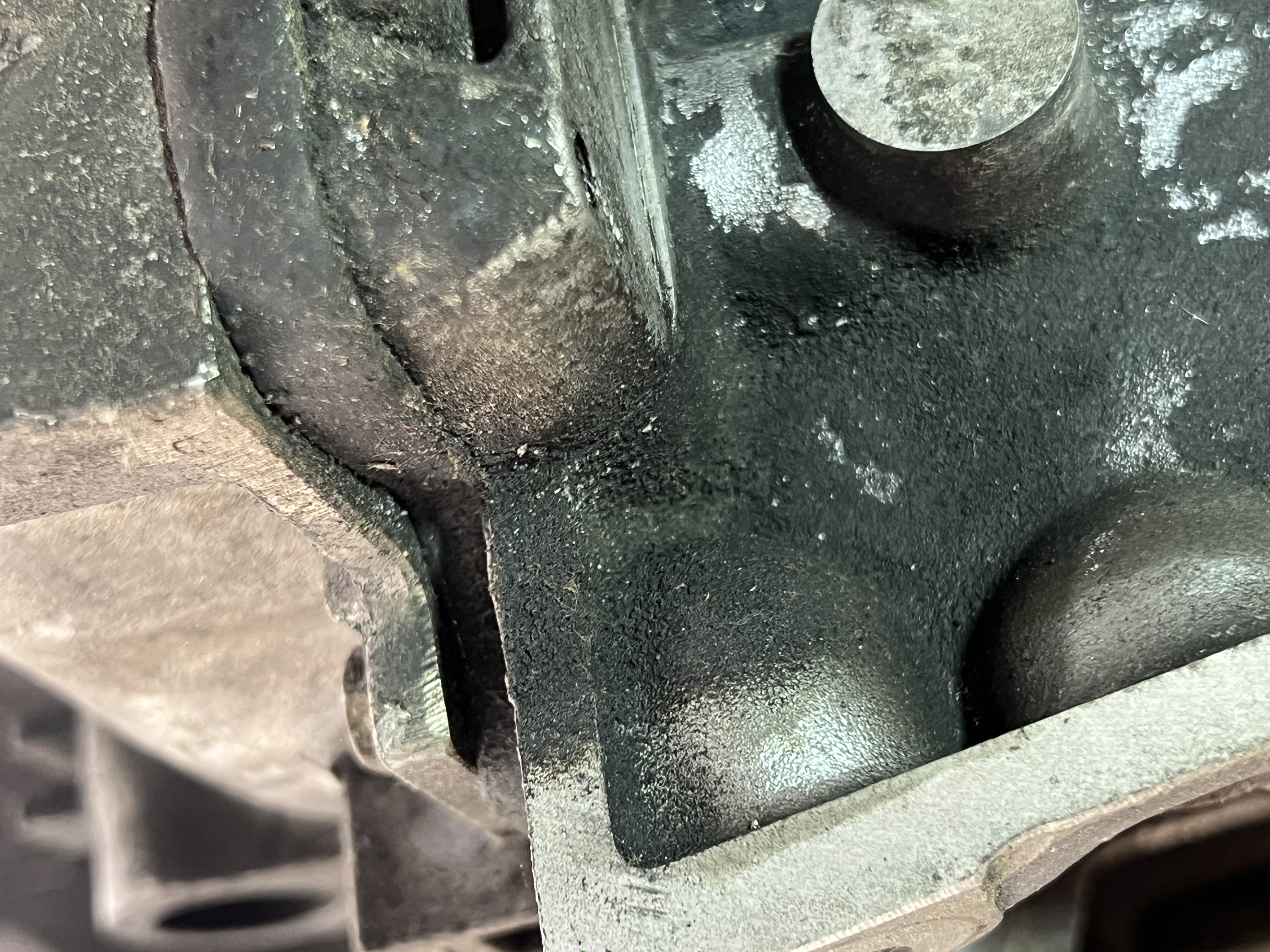

I think that's just how it is...? Here's that corner on an old motor in my garage. The gasket follows the pan/block on all the other corners, but much less so in that one corner.
-
michaelmount123
- Posts: 297
- Joined: Fri Jul 09, 2021 7:51 am
- Has thanked: 25 times
- Been thanked: 177 times
I keep preaching tis method because it works, and it simplifies the process. I've installed more pan gaskets than most, and I HATE leaks. You'll be pleased with this:
The typical issues leading to leaks are gasket/seal bulging on the side rails, and corners not being sealed by the rubber gasket. What to do??
- Clean all old sealant from the corners of the BLOCK, OIL PUMP, AND oil pan. A small wire brush works pretty well.
- Oil the gasket with your hands. Make sure it's wet all around; all sides top and bottom, front and back. Not dripping, just wet with motor oil.
- Put a bead of Loctite 574 along the oil pump seam at the front of the side rails. It should be at same level as the pan rail.
- Lay the gasket on the rails, put pan in place and start all bolts.
- Use the factory method for torqueing the bolts, both sequence and torque.
- After the last pass, go back and ensure all bolts are at final torque. Center bolts will probably be loose.
- Last, worry about something else, your pan will not leak.
The typical issues leading to leaks are gasket/seal bulging on the side rails, and corners not being sealed by the rubber gasket. What to do??
- Clean all old sealant from the corners of the BLOCK, OIL PUMP, AND oil pan. A small wire brush works pretty well.
- Oil the gasket with your hands. Make sure it's wet all around; all sides top and bottom, front and back. Not dripping, just wet with motor oil.
- Put a bead of Loctite 574 along the oil pump seam at the front of the side rails. It should be at same level as the pan rail.
- Lay the gasket on the rails, put pan in place and start all bolts.
- Use the factory method for torqueing the bolts, both sequence and torque.
- After the last pass, go back and ensure all bolts are at final torque. Center bolts will probably be loose.
- Last, worry about something else, your pan will not leak.
Last edited by michaelmount123 on Sun Apr 07, 2024 4:51 pm, edited 1 time in total.
-
Jay Wellwood
- Posts: 64
- Joined: Thu Jul 01, 2021 6:40 pm
- Location: Atlanta
- Has thanked: 102 times
- Been thanked: 43 times
Michael
I did a quick search for Locktite 574 and Amazon offered up with two styles - liquid and paste. Which one would you recommend?
I did a quick search for Locktite 574 and Amazon offered up with two styles - liquid and paste. Which one would you recommend?
Jay
Several Krauts and a Rice burner
...looking for a Meatball
Proudly qualified in Submarines
USS Casimir Pulasksi (SSBN 633)
Several Krauts and a Rice burner
...looking for a Meatball
Proudly qualified in Submarines
USS Casimir Pulasksi (SSBN 633)
-
Drscottsmith
- Posts: 230
- Joined: Thu Feb 16, 2023 5:43 pm
- Has thanked: 3 times
- Been thanked: 15 times
That's a good question Jay -
I have the 574 that I used for the balance shaft sealing process. Not sure if that is considered past or liquid. I remember it was orange.
I have the 574 that I used for the balance shaft sealing process. Not sure if that is considered past or liquid. I remember it was orange.
-
Drscottsmith
- Posts: 230
- Joined: Thu Feb 16, 2023 5:43 pm
- Has thanked: 3 times
- Been thanked: 15 times
@michaelmount123
The instructions you posted - was that with the engine on a stand? Anything different doing it underneath the car? Obviously it is a royal pain! Wish it would have worked completely dry the first time!
The instructions you posted - was that with the engine on a stand? Anything different doing it underneath the car? Obviously it is a royal pain! Wish it would have worked completely dry the first time!
-
michaelmount123
- Posts: 297
- Joined: Fri Jul 09, 2021 7:51 am
- Has thanked: 25 times
- Been thanked: 177 times
Loctite 574 will be the correct sealant, whether it's listed as a paste or liquid.
I (almost) always installed the pan on a stand, but installation under the car is the same process.
BTW, the oiled gasket will not bulge, and the oil allows the gasket to squirm up into the corners to seal them up without any sealant. Do clean the corners of old sealant; both on the block and on the pan.
I (almost) always installed the pan on a stand, but installation under the car is the same process.
BTW, the oiled gasket will not bulge, and the oil allows the gasket to squirm up into the corners to seal them up without any sealant. Do clean the corners of old sealant; both on the block and on the pan.
-
Drscottsmith
- Posts: 230
- Joined: Thu Feb 16, 2023 5:43 pm
- Has thanked: 3 times
- Been thanked: 15 times

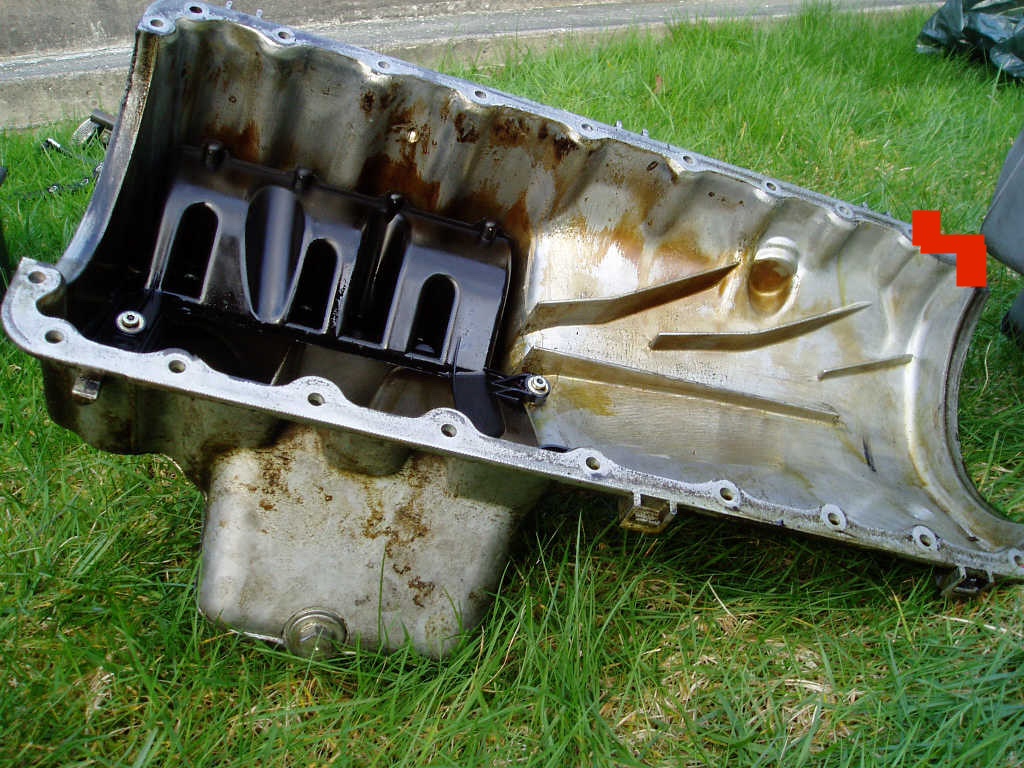

One more clarification...
Put a bead of Loctite 574 along the oil pump seam at the front of the side rails. It should be at same level as the pan rail.
Do you mean in the area I shaded red? Not on the semicircular part...?
Put a bead of Loctite 574 along the oil pump seam at the front of the side rails. It should be at same level as the pan rail.
Do you mean in the area I shaded red? Not on the semicircular part...?
- 86_oil_pan.jpg (305.63 KiB) Viewed 725 times
-
michaelmount123
- Posts: 297
- Joined: Fri Jul 09, 2021 7:51 am
- Has thanked: 25 times
- Been thanked: 177 times
No, not the area in red. I mean the seam on the block where the oil pump meets the block. This is on the BLOCK, not the pan. Just a small bead of 574 on top of that seam.
Does this clarify?
Does this clarify?
-
Drscottsmith
- Posts: 230
- Joined: Thu Feb 16, 2023 5:43 pm
- Has thanked: 3 times
- Been thanked: 15 times

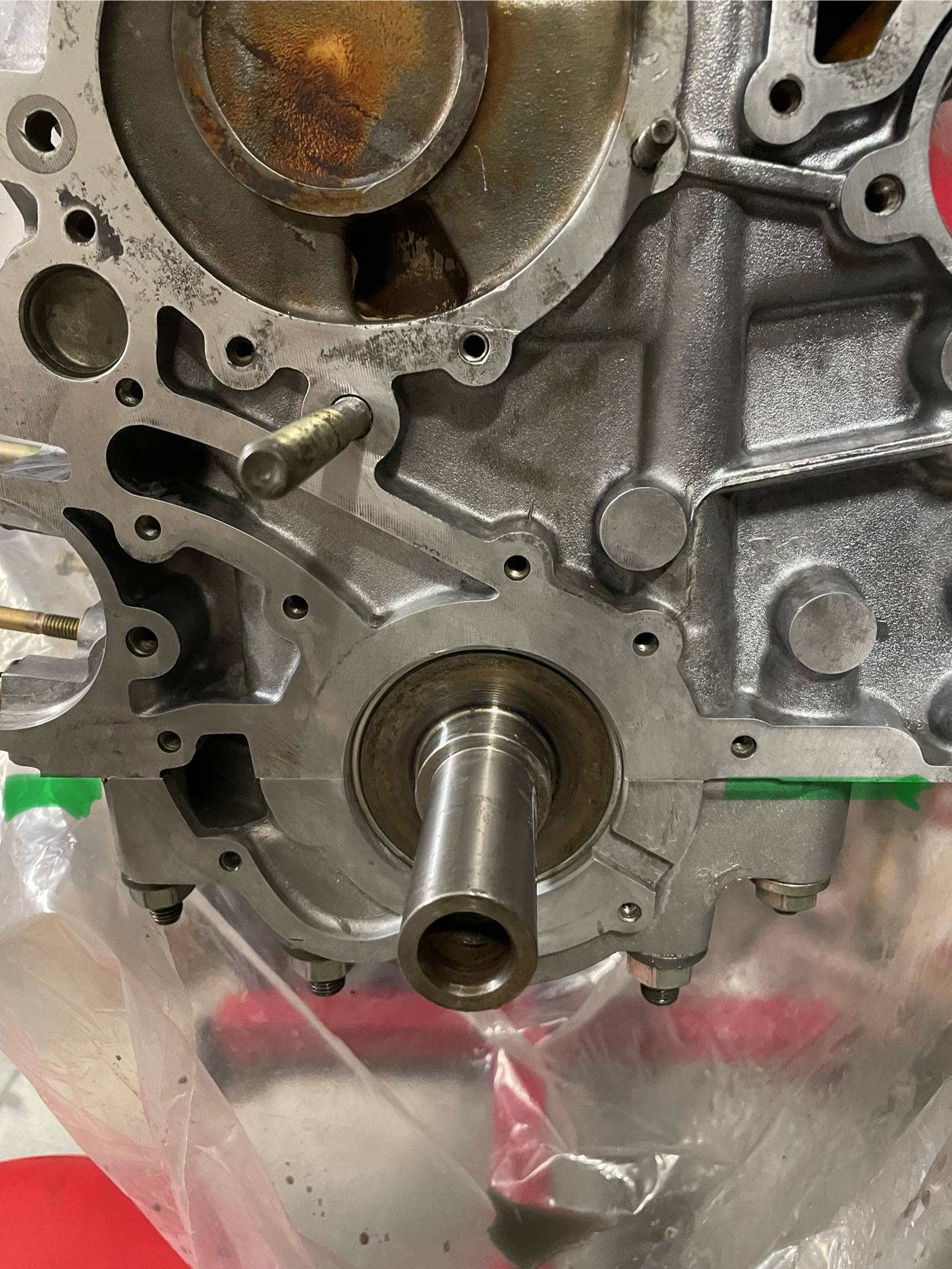

So old pic of reassembly but you mean this seam…green lines
- IMG_0671.jpeg (833.46 KiB) Viewed 718 times
