Guess the tool

Talk and Tech about turbocharged 924/944/968 cars
Post Reply
User avatar
chris white
Posts: 424
Joined: Wed Aug 11, 2021 11:40 am
Been thanked: 167 times

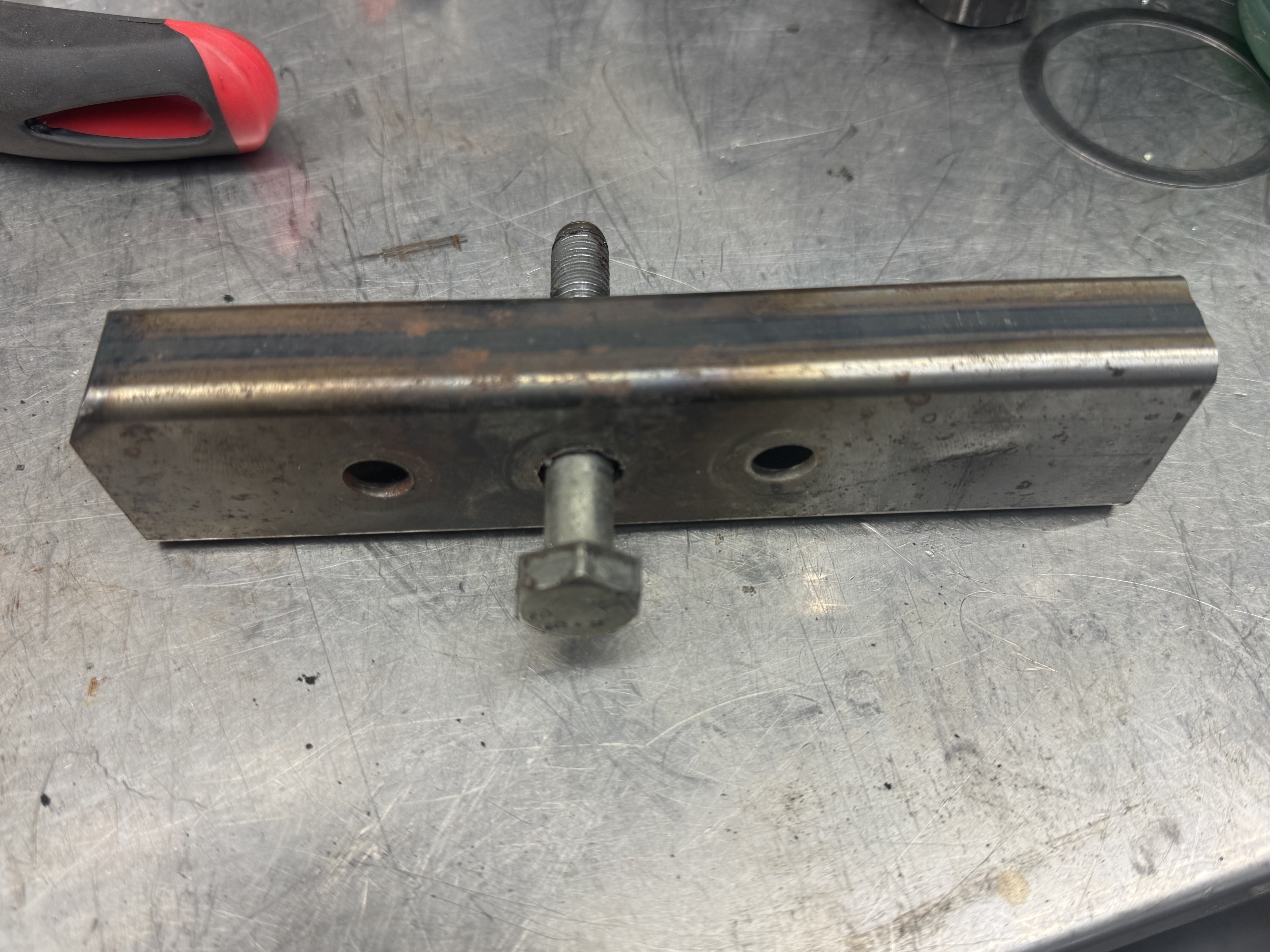

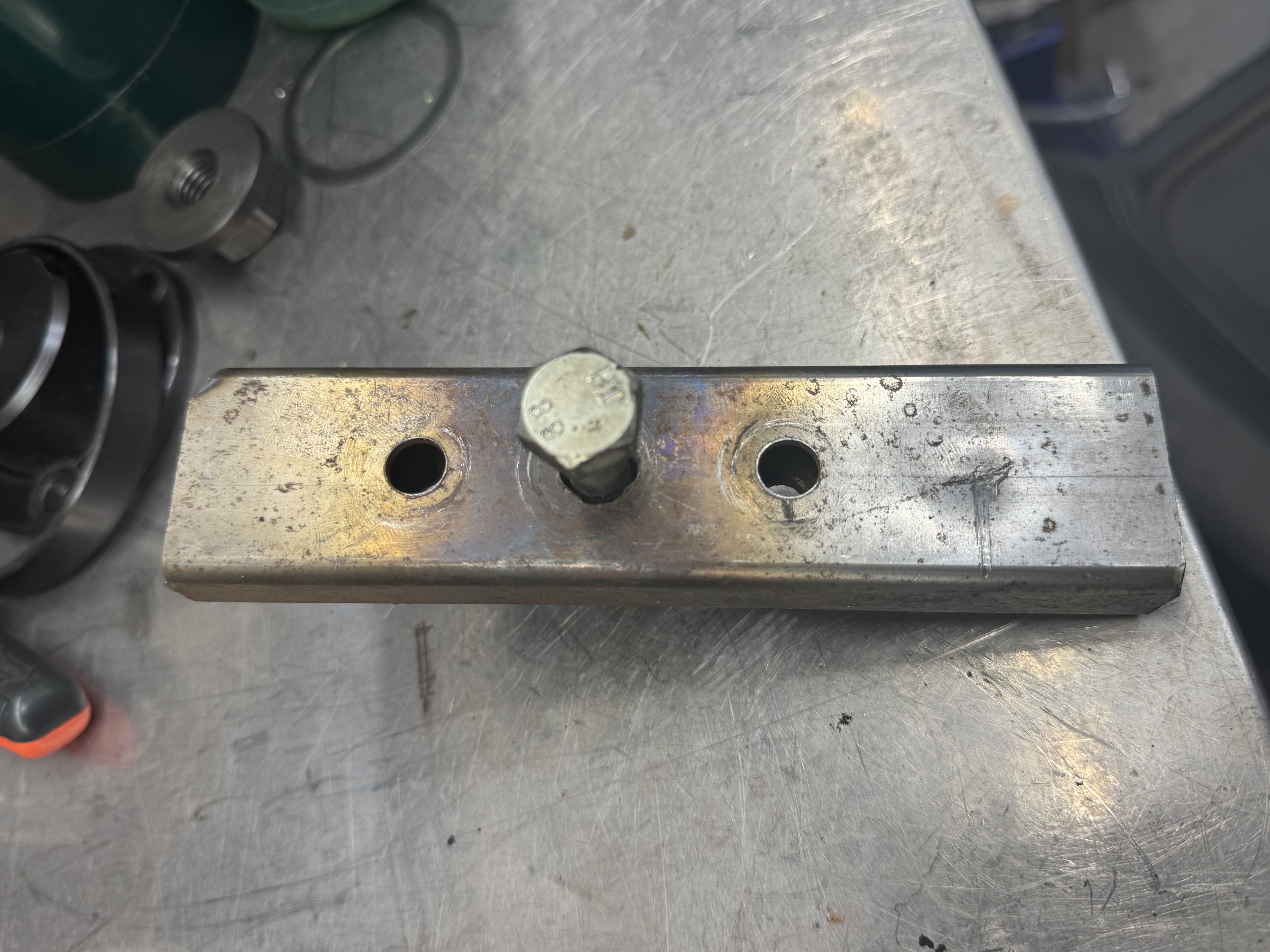

Made many a custom 944 tools over the years. Had to use this one today, made it long time ago. Any guesses?
Add Pictures/Files

#1

Top
User avatar
Tom
Site Admin
Posts: 8567
Joined: Fri Jun 25, 2021 2:04 pm
Location: Silicon Valley, CA
Has thanked: 891 times
Been thanked: 3847 times
Contact:
Contact Tom
A puller or press of some kind... but nothing obvious is coming to mind.

#2

Top
User avatar
chris white
Posts: 424
Joined: Wed Aug 11, 2021 11:40 am
Been thanked: 167 times
when doing a clutch job it can be bolted in place of the slave cylinder and the center bolt screws in to open up the pressure plate so that the torque tube will slip In to place effortlessly. Total cost…about 50 cents!

#3

Top
User avatar
Tom
Site Admin
Posts: 8567
Joined: Fri Jun 25, 2021 2:04 pm
Location: Silicon Valley, CA
Has thanked: 891 times
Been thanked: 3847 times
Contact:
Contact Tom
chris white wrote: Tue May 27, 2025 11:11 am when doing a clutch job it can be bolted in place of the slave cylinder and the center bolt screws in to open up the pressure plate so that the torque tube will slip In to place effortlessly. Total cost…about 50 cents!
Very nice!!

#4

Top
User avatar
Belgian951
Posts: 222
Joined: Tue Oct 03, 2023 3:59 am
Has thanked: 74 times
Been thanked: 32 times
interesting!
1986 944 Turbo Garnet Rot Metallic

#5

Top
michaelmount123
Posts: 297
Joined: Fri Jul 09, 2021 7:51 am
Has thanked: 25 times
Been thanked: 177 times
I like it! I presume you fit the TT shaft into the clutch, then screw in the bolt to allow the clutch disc to align with the pilot bearing. Yes?

I also used to use a couple of long 12mm bolts with the heads cut off (effectively studs) to get the TT in the right position for the shaft to go home. This, along with your trick tool may also be helpful.
Last edited by michaelmount123 on Sat May 31, 2025 2:30 pm, edited 1 time in total.

#6

Top
User avatar
Tom
Site Admin
Posts: 8567
Joined: Fri Jun 25, 2021 2:04 pm
Location: Silicon Valley, CA
Has thanked: 891 times
Been thanked: 3847 times
Contact:
Contact Tom
michaelmount123 wrote: Sat May 31, 2025 2:25 pm I also used to use a couple of long 12mm bolts with the heads cut off (effectively studs) to get the TT in the right position for the shaft to go home. This, along with your trick tool may also be helpful.
D'oh! Why didn't I think of that! Brilliant.

#7

Top
User avatar
chris white
Posts: 424
Joined: Wed Aug 11, 2021 11:40 am
Been thanked: 167 times
michaelmount123 wrote: Sat May 31, 2025 2:25 pm I like it! I presume you fit the TT shaft into the clutch, then screw in the bolt to allow the clutch disc to align with the pilot bearing. Yes?

I also used to use a couple of long 12mm bolts with the heads cut off (effectively studs) to get the TT in the right position for the shaft to go home. This, along with your trick tool may also be helpful.
yes, you will be amazed how easily the TT slips into the last inch or so!
